Case study
Smart Curbs
What can a city bus see? With the MIT Senseable City Lab, I fitted public buses in Paris with computer-vision sensors that measured pedestrian activity and traffic along their routes. GDPR set the main rule: every image had to be processed on the device, and only anonymized metadata could leave the vehicle.

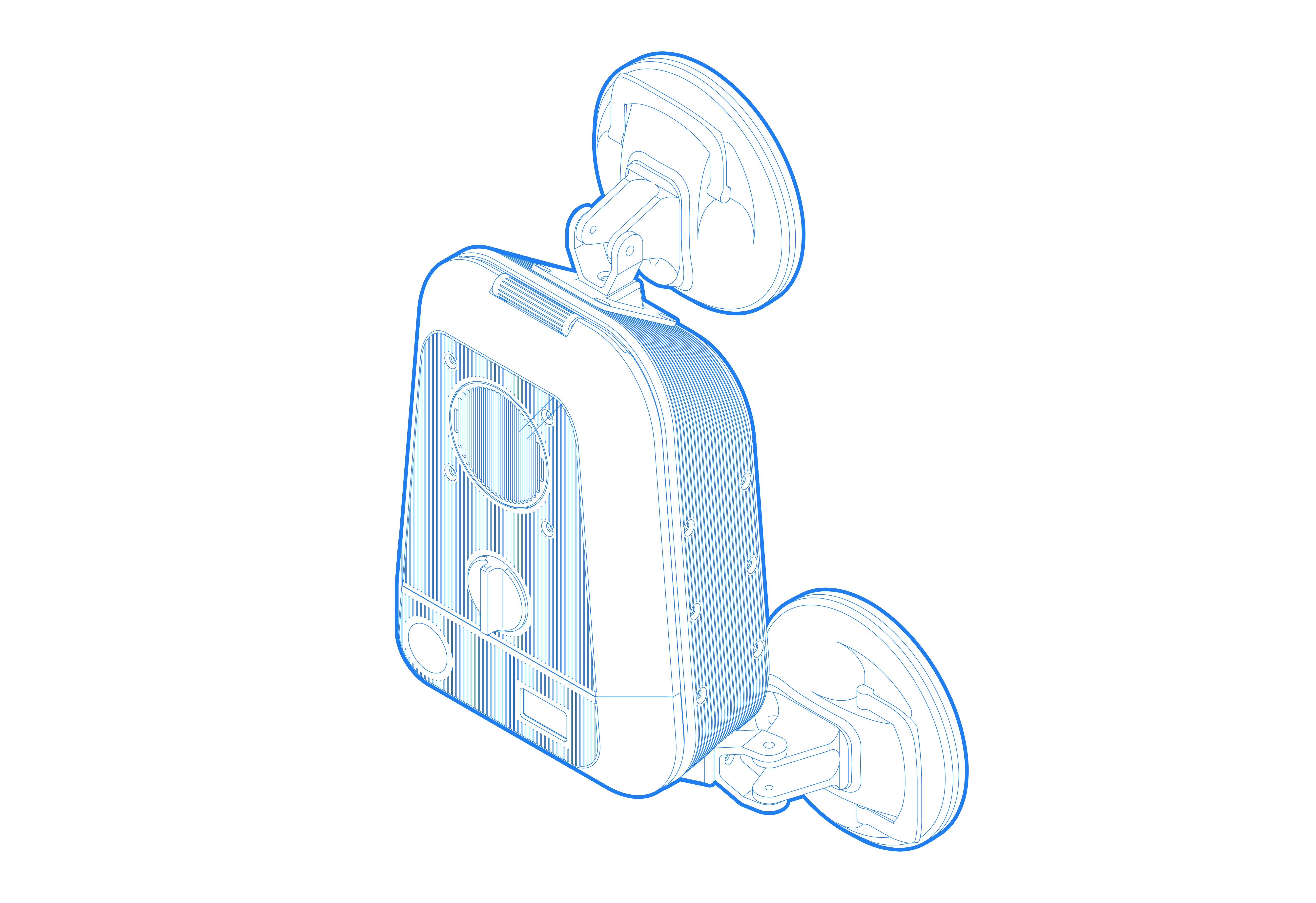

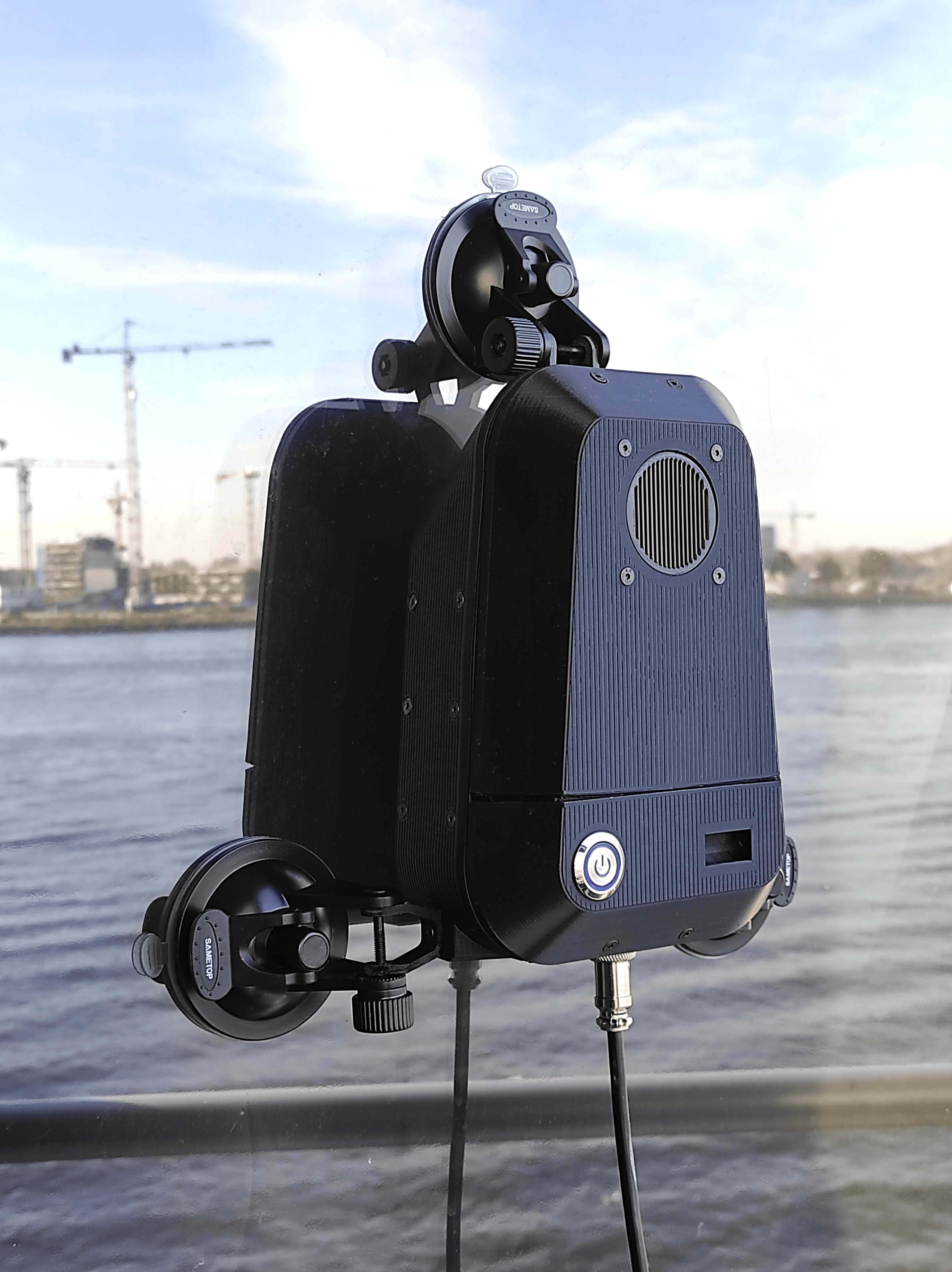

Each sensor was a Raspberry Pi running a compressed neural network. I wrote a fault-tolerant microservice pipeline for the whole data lifecycle (classification, local storage, sync), plus power management that woke the device when the bus started and put it to sleep when it stopped. Remote SSH access let me monitor the fleet and push updates over the air.
To prototype, I strapped a sensor to a bicycle and rode bus routes through Paris, which surfaced the real edge cases: Wi-Fi handoffs and battery quirks. Integrating with RATP, the Paris transit authority, turned up a stranger one: its API rejected negative coordinates, so data from some parts of the city simply failed. Instead of waiting for an upstream fix, I added a coordinate transform to the pipeline.

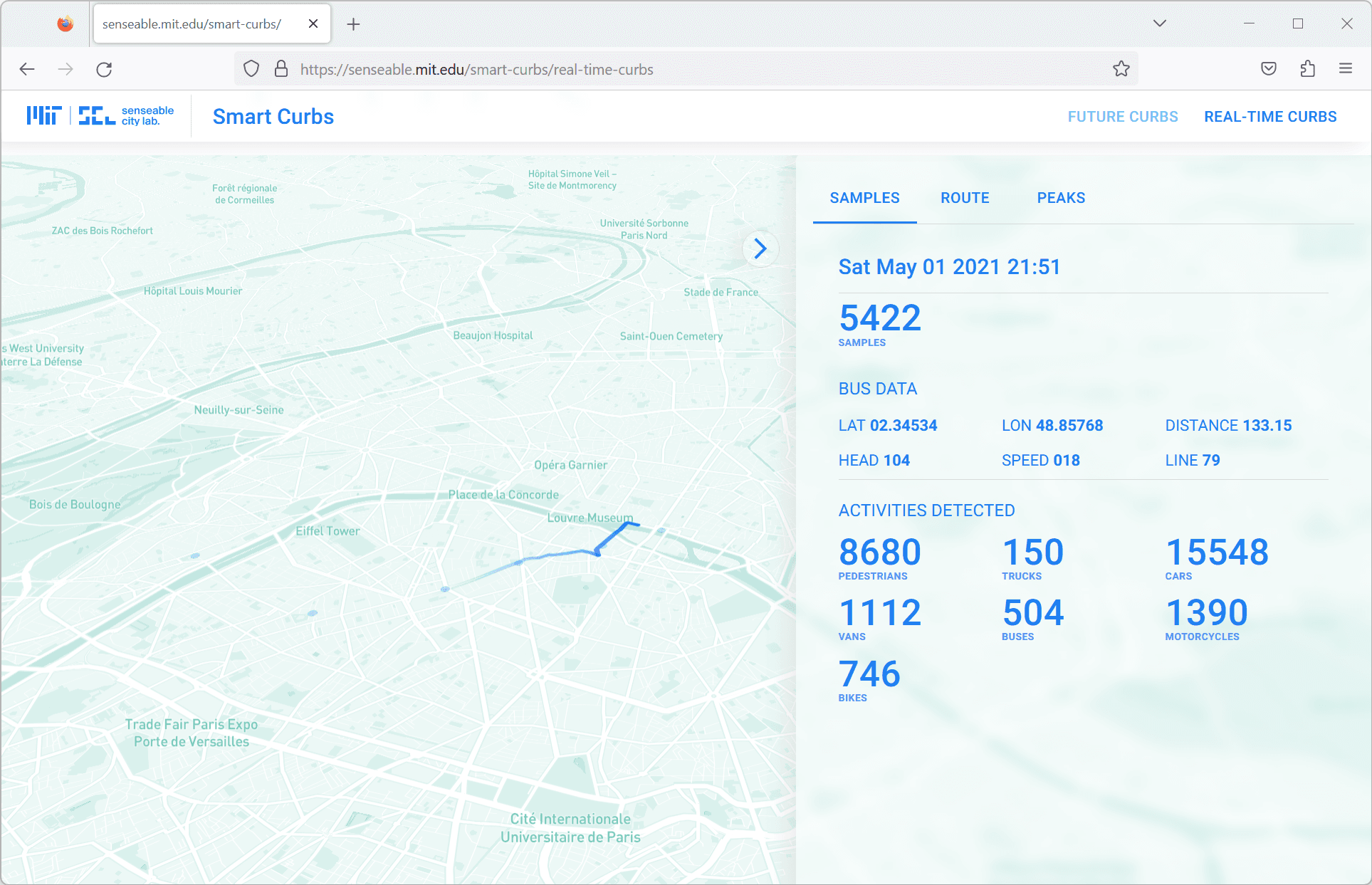

The sensors ran autonomously on public buses for five weeks. A web dashboard I built showed activity, traffic density, and pedestrian flow in near real time, making the case that transit fleets can double as mobile monitoring stations for the city.
Credits
- Carlo Ratti — Director
- Fábio Duarte — principal research scientist
- Arianna Salazar-Miranda — Project Lead
- Fan Zhang — Computer Vision and Machine Learning
- Maoran Sun — Computer Vision and Machine Learning
- Pietro Leoni — Sensor Integration and Data Visualization
- Zhuangyuan Fan
- Ricardo Alvarez
- Meghan Timmons
RATP
- Côme Berbain
- Dominique Servier-Crouzat
- Shadi Sadeghian
- Nathanael Mifsud-Couchaux
- Thibaut Durand
- Pauline Baudry
- Olivier Condore
- Michael Colomer
- Philippe Mader
Publications
2023
Smart curbs: Measuring street activities in real-time using computer vision
on: Landscape and Urban Planning
authors: Arianna Salazar-Miranda, Fan Zhang, Maoran Sun, Pietro Leoni, Fábio Duarte, Carlo Ratti
